Rubber Grommets

All standard grommets are manufactured using a black, general purpose, 50 durometer SBR rubber compound. Other materials and colors available with special order.

Download Parts Catalog

Specifications

Rubber Grommets - Style 1

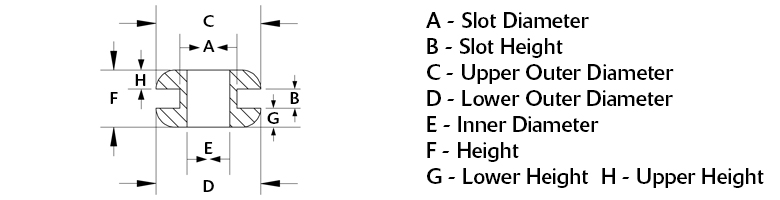

0Part NumberSlot DiameterSlot HeightUpper Outer DiameterLower Outer DiameterInner DiameterHeightLower HeightUpper HeightSpec Sheet
1ABCDEFGH
28000.1560.0470.250.250.1090.1720.0620.062Download PDF
38070.3750.0620.50.50.250.1870.0620.062Download PDF
48080.3750.0620.50.50.1560.2150.0780.078Download PDF
58110.4370.0940.6250.6250.3750.2810.0940.094Download PDF
68140.6250.0620.8750.8750.3750.3440.1410.141Download PDF
78370.420.0620.6250.6250.3120.250.0940.094Download PDF
88570.4370.1250.5620.5620.1870.3750.1250.125Download PDF
99010.250.0470.3440.3440.1250.2180.0780.078Download PDF
109030.3440.0620.4060.4060.1870.2180.0780.078Download PDF
119040.4370.0310.50.50.250.1250.0620.062Download PDF
129070.4370.0620.6250.6250.2810.250.0940.094Download PDF
139080.4680.0620.5780.5780.2810.3120.1250.125Download PDF
149090.470.060.560.560.310.190.0650.065Download PDF
159110.50.0620.6870.6870.4060.250.0940.094Download PDF
169120.3750.1870.6250.6250.1870.3750.0940.094Download PDF
179130.5620.0620.750.750.4370.250.0940.094Download PDF
189150.750.062110.5620.3120.1250.125Download PDF
199170.750.094110.4950.2810.0940.094Download PDF
209180.5620.1250.750.750.4370.3750.1250.125Download PDF
219210.3750.1560.6250.6250.2810.3440.0940.094Download PDF
229250.50.250.6870.6870.3130.4370.9250.925Download PDF
239290.5620.50.750.750.3750.750.1250.125Download PDF
2493110.0621.1881.1880.8750.1870.0620.062Download PDF
259331.0620.0941.2811.2810.7180.3750.1250.125Download PDF
269351.0940.0621.6251.6250.750.3120.1250.125Download PDF
279361.1250.0941.51.50.750.3120.110.11Download PDF
289710.3440.0620.50.50.250.1870.0620.062Download PDF
299900.4060.1250.6250.6250.2660.3750.1250.125Download PDF
3010170.9370.0941.1251.1250.2810.3440.1250.125Download PDF
3110180.8750.1251.1251.1250.750.3750.1250.125Download PDF
3210190.8750.1251.1251.1250.2810.3750.1250.125Download PDF
3310220.8750.0621.1251.1250.750.3120.1250.125Download PDF
3410230.750.12110.3120.380.130.13Download PDF
3510270.9370.0941.1251.1250.750.3440.1250.125Download PDF
3610280.8750.0941.1251.1250.2810.3440.1250.125Download PDF
3710290.9370.0941.1251.1250.6250.3440.1250.125Download PDF
3810300.8750.1251.1251.1250.6250.3750.1250.125Download PDF
3910310.8750.0621.1251.1250.6250.3120.1250.125Download PDF
4010401.250.0621.6251.6250.8750.4370.1870.187Download PDF
4110441.3750.0941.751.7510.3750.1410.141Download PDF
4210451.3750.1091.751.7510.4060.1490.149Download PDF
4310471.50.0621.8751.8751.250.3440.1410.141Download PDF
4480510.3120.620.50.50.1870.250.0940.094Download PDF
4590110.1870.0620.3440.3440.1250.2180.0780.078Download PDF
4690150.250.1090.3280.3280.1560.2030.0470.047Download PDF
4790240.2810.0940.4060.4060.1820.3120.1090.109Download PDF
4890330.3120.0470.4370.4370.2030.2340.0470.047Download PDF
4990510.3750.0620.5940.5940.2810.2030.070.07Download PDF
5090530.3750.0630.6250.6250.250.3440.1410.141Download PDF
5190610.4370.0470.6250.6250.0940.2030.0780.078Download PDF
5291150.50.0620.6250.6250.3120.250.0940.094Download PDF
5391160.50.0940.8120.8120.3750.3750.1410.141Download PDF
5491180.50.0620.6870.6870.1560.2810.1090.109Download PDF
55901210.1870.0620.3440.3440.1410.1870.0620.062Download PDF

Rubber Grommets - Style 2

0Part NumberSlot DiameterSlot HeightUpper Outer DiameterLower Outer DiameterInner DiameterHeightLower HeightUpper HeightSpec Sheet
1ABCDEFGH
28130.1560.0930.250.250.1090.1710.0390.039Download PDF
39100.50.0620.6250.6250.3750.250.0940.094Download PDF
49140.5620.0620.8120.8120.4060.3120.1250.125Download PDF
59230.50.1250.750.750.250.4370.1560.156Download PDF
69240.50.1250.750.750.3120.3750.1250.125Download PDF
79440.3120.0620.6250.6250.1870.2180.0780.078Download PDF
811110.4370.0620.6250.6250.250.4370.1870.187Download PDF
911220.4060.0620.6560.6560.250.3750.0940.094Download PDF
1011350.4370.0620.6250.6250.3120.3440.1410.141Download PDF
1111550.50.0620.750.750.3120.4370.1250.125Download PDF
1287010.3750.0470.5620.5620.250.2970.1250.125Download PDF
1387020.4370.0620.5620.5620.250.3120.1250.125Download PDF

Rubber Grommets - Style 3

0Part NumberSlot DiameterSlot HeightUpper Outer DiameterLower Outer DiameterInner DiameterHeightLower HeightUpper HeightSpec Sheet
1ABCDEFGH
28090.3750.0780.4690.5620.250.1860.0620.046Download PDF
38470.4380.0470.7510.250.250.1020.102Download PDF
48690.50.1870.6250.6250.3120.50.1260.187Download PDF
59020.1870.0620.2660.3440.1250.1870.0620.062Download PDF
69050.3750.0620.5620.5620.2810.250.0940.094Download PDF
79190.2340.0620.2810.3750.1560.3120.1880.062Download PDF
89450.6880.141110.3750.4060.1320.132Download PDF
9103210.0781.3121.3120.6870.3750.1480.148Download PDF
1011370.4370.0620.750.750.250.5620.3750.125Download PDF
1181410.6250.1250.8750.8750.3750.4060.1410.141Download PDF
1291380.4530.1870.5160.6250.3120.2810.0630.031Download PDF
13M82470.7750.1871.061.060.5950.4230.1180.118Download PDF

Rubber Grommets - Style 4

0Part NumberSlot DiameterSlot HeightUpper Outer DiameterLower Outer DiameterInner DiameterHeightLower HeightUpper HeightSpec Sheet
1ABCDEFGH
210481.50.0941.8751.8751.250.3750.1410.141Download PDF
310491.50.1251.8751.8751.250.4060.1410.141Download PDF
410561.750.0942.1252.1251.250.3750.1410.141Download PDF
5106420.0942.3752.3751.50.3750.1410.141Download PDF
610702.2030.0622.6252.6251.8590.4370.1870.187Download PDF
710882.8750.0943.7542.6250.4060.1870.125Download PDF
