Rubber Suction Cups
All standard suction cups are manufactured using black, general purpose compounds. Additionally, all cup sizes have a brass plated, steel machine screw securely bonded in place. Other materials and colors are available with special order.
Download Parts Catalog

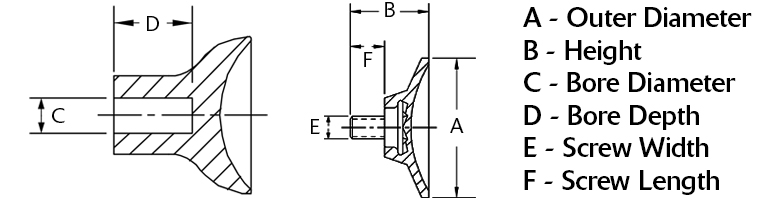

Specifications
| 0 | Part Number | Outer Diameter | Height | Bore Diameter | Bore Depth | Screw Width | Screw Length | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| 1 | A | B | C | D | E | F | ||
| 2 | 100-MS2 | 1.000 | 0.563 | N/A | N/A | 8-32 | 3/8 | Download PDF |
| 3 | 1254-HS | 1.25 | 1.125 | 0.281 | 0.625 | N/A | N/A | Download PDF |
| 4 | 138-MS1 | 1.375 | 0.75 | N/A | N/A | 8-32 | 1/4 | Download PDF |
| 5 | 138-MS2 | 1.375 | 0.75 | N/A | N/A | 8-32 | 3/8 | Download PDF |
| 6 | 312HN | 3.125 | 1.531 | 0.25 | 0.625 | 1/4-20 | N/A | Download PDF |
| 7 | 312MS | 3.125 | 1.531 | N/A | N/A | 1/4-20 | 3/8 | Download PDF |
| 8 | 400MS | 3.75 | 2 | N/A | N/A | 5/16-18 | 5/8 | Download PDF |
| 9 | 100-MS1 | 1.000 | 0.563 | N/A | N/A | 8-32 | 1/4 | Download PDF |
